WinchRite ABT Electric Winch Handle


MFG#: WINCHRITE
SKU:



$859.95
Qty

WinchRite ABT - Electrify Your Winches!

What makes the WinchRite ABT Cordless Winch Handle superior?
Simple Answer: DESIGN!

Designed specifically for use on a sailboat's winches, it achieves 130nm+ of torque and reaches variable speeds of 50-120rpm in both directions allowing for two speed winch rotations. This compact, lightweight, and extremely simple to operate unit will drive your standard winches as if they were electric. Just pull the variable speed trigger and winch away. A flick of the switch reverses directions for 2-speed winching. Watch the main go up, watch the roller furler furl, tweek the jib, hoist the outboard. Move it from winch to winch and it will do the muscle work for you.

The WinchRite ABT rests easily on its non-skid back when not in use and deploys quickly again and again without frequent recharging. The exterior housing is a composite of ABS and PC plastics resulting in superior durability and strength, with integrated non-skid rubber inlays. The integrated stainless steel winch cog contains a unique drive to prevent failure in both rotation directions and will not unthread or snap the retaining screw. Lots of power from its powerful Lithium Battery insures the job gets done quickly and with confidence.

Operating the WinchRite should always utilize the lowest speed of your winch to ensure maximum pull and least battery consumption. By using the lower speed of the winch less resistances is produced and greater torque. This will also reduce overheating of sealed motor/drive unit within the housing and increase life span.

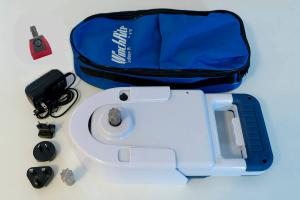

Our Standard WinchRite Package comes with
  • Winchrite Drive Unit
  • 2 SS Drive Cogs
  • 100-240v AC Charger
  • 12vDC to 110vAC Adapter
  • Plastic Storage Cradle
  • Storage Tote Bag

Features

  • Works on all standard 8-point winches.
  • Designed specifically for use on a sailboat.
  • Weather resistant.
  • Powerful reversible brushless motor
  • Efficient Lithium Ion battery
  • Strengthened gear box design

Technical Specifications:

  • Housing: ABS and PC plastic
  • Torque: 130nm/1150inlb-TESTED
  • Battery: 21.6 DC Lit-ion 2.8ah
  • Chargers: 100/240 AC & DC/AC Adapter
  • RPM: 0-120+
  • Variable Speed
  • Reversible Motor
  • Weather Resistant
  • Non-Skid rubber inlay
  • Stainless steel winch cogs (2)
  • Weight: 6.4 lb
  • 1 Year Warranty


Owner's Manual
Operating Instructions







Options and Accessories
Product SKU Captain's Price Options Qty
WinchRite Cog $29.95
WinchRite Holder $39.95
WinchRite Storage Bag $24.95
