Vetus Fuel Tank Connections kits have been completely redesigned as a result of user feedback. The new FTL type requires only a single 4 11/64" (114mm) diameter hole saving considerable installation time. Tightening of just three bolts compresses the rubber seating to ensure a perfect, leak free seal.

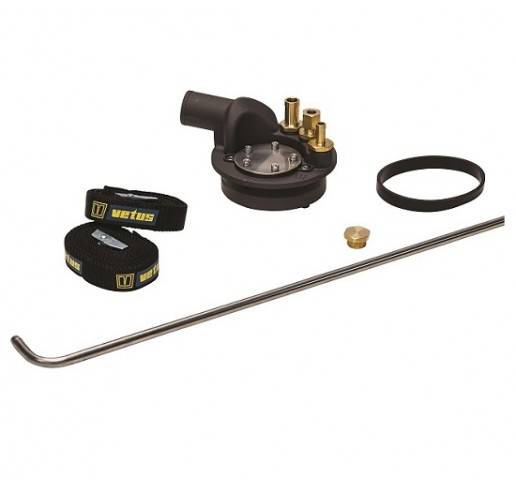

Each connection kit is supplied with two mounting straps and is suitable for tanks made from plastic, metal or GRP. Suitable for diesel and petrol (providing tank material is suitable).
Specification:
- Anodized, salt water resistant aluminum lid
- Filling Hose: 1-1/2'' (38mm) or 2'' (51mm)
- Tank Ventilation Hose: 5/8'' (16mm)
- Fuel Return: 5/16'', 3/8'' or 5/8'' (8, 10 or 16 mm) hose
- Fuel Suction pipe according to the model selected
- Ø8 mm, max. tank depth 440 mm
- Ø10 mm, max. tank depth 850 mm
- Ø15mm, max. tank depth 970 mm
- Mounting point for 5 Hole SAE level sensor
- Terminal Tag (6.3mm) for earthing wire
- 2 mounting straps to secure tank
|
