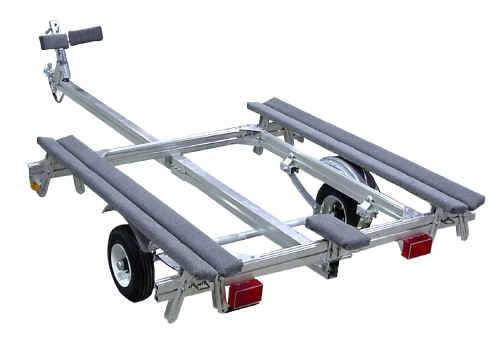

 The Trailex SUT-450-I is designed for inflatable boats up to 450 pounds. The 72'' double bunks
adjust to fit the contour of your tubes to provide maximum support. The epoxy coated
leaf spring suspension virtually eliminates road bumps and shock. The bunks, rear
transom guide, front padded bow stop and axle position are completely adjustable
using our patented "T" bolt construction. Designed for soft bottom inflatables.
(64" maximum Centerline of Tubes).
The SUT-450-I Trailer's all aluminum, all bolted construction, is 50% lighter
than steel trailers and is easy to maneuver by hand on level ground.
Shipped via UPS in three foam filled, secured boxes, the SUT-450-I
comes with clear easy-to-follow directions and is easily assembled.
The maintenance-free SUT-450-I is lightweight, strong, rustproof and comes with
a 3-year limited warranty.
| Specifications: |
Standard Equipment includes: |
| Trailer Length: |
12'-11" |
- Dual submersible stop and turn signal lights
- Hot-dipped galvanized safety chain
- 72" padded bunks w/8" brackets
- Adjustable bow stop
- Lift handle with vinyl caps
- High-speed demountable wheels and tires
- Adjustable undercarriage
- Epoxy coated springs
- High-impact plastic fenders
|
| Trailer Width: |
74" |
| Trailer Capacity: |
450lb. |
| Trailer Weight: |
200 lbs. |
| Shipping Weight: |
180lbs. |
| Tire Size: |
4:80 x 8", 16" high |
| Coupler Size: |
1-7/8" |
| Electrical: |
Flat 4 prong |
| |
|
| The Trailex SUT-450-I will fit the
following inflatables: |
|
Manufacturer
|
Model
|
Size
|
| AB |
Mares 3.50 I |
11'-0" x 5'-4" |
| Achilles |
SGX-122 |
12'-2" x 5'-4" |
| Avon |
Rover R340 |
11'-2" x 5'-3" |
| Caribe |
C-12 |
11'-6" x 5'-7" |
| Maxxon |
CS-390 |
12'-9" x5'-6" |
| Mercury Quicksilver |
340 |
11'-2" x 5'-0" |
| Mercury Quicksilver |
380 |
12'-6" x 5-'8" |
| Sea Eagle |
SE-12.6 |
12'-6" x 5'-7" |
| Zodiac |
G 380 Fire Brigade |
12'-6" x 6'0" |
| Zodiac |
MK1 Touring |
11'-6" x 5'-3" |
| Zodiac |
MK2C Touring |
12-6" x 5'-9" |
| Zodiac |
MK1 Futura |
11'-6' x 5'-4" |
| Zodiac |
MK2C Futura |
12'-6" x 6'-0" |
| Zodiac |
MK1 Futura Fastroller |
11'-6' x 5'-4" |
| Zodiac |
MK2C Futura Fastroller |
12'-6" x 5'-10" |
Made in the USA by Trailex - manufacturers of all aluminum
trailers for over 40 years.
|
