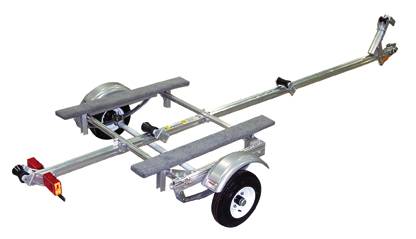

 The Trailex SUT-500-S is designed for Jon Boats, flat bottom boats & semi Vee
boats to 18' long and up to 500 lbs. Wide 6" bunks provide maximum hull support
and adjust to fit the contour of your hull. The epoxy coated leaf spring
suspension virtually eliminates road bumps and shock to your boat. The SUT-500-S
bunks, rolls, axle and bow stand are completely adjustable for a custom fit to
your boats' specific hull configuration..
The SUT-500-S Trailer's all aluminum, all bolted construction, is 50% lighter
than steel trailers and is easy to maneuver by hand on level ground.
Shipped via UPS in three foam filled, secured boxes, the SUT-500-S comes with
clear easy-to-follow directions and is easily assembled.
The maintenance-free SUT-500S is lightweight, strong, rustproof and comes with a
3-year limited warranty.
| Specifications: |
Standard Equipment includes: |
| Trailer Length: |
15'-2" |
- Dual submersible stop and turn signal lights
- Hot-dipped galvanized safety chain
- 48" padded bunks w/8" brackets
- Three 6" rollers
- Adjustable bow stop
- Lift handle with vinyl caps
- High-speed demountable wheels and tires
- Adjustable undercarriage
- Epoxy coated springs
- High-impact plastic fenders
|
| Trailer Width: |
72" |
| Trailer Capacity: |
500lb. |
| Trailer Weight: |
130 lbs. |
| Shipping Weight: |
180lbs. |
| Tire Size: |
4:80 x 8", 16" high |
| Coupler Size: |
1-7/8" |
| Electrical: |
Flat 4 prong |
| |
|
Made in the USA by Trailex - manufacturers of all aluminum
trailers for over 40 years. |
