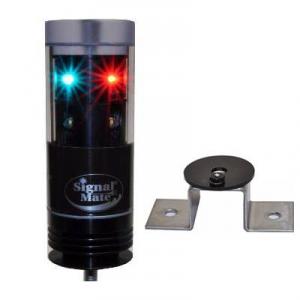

Combination Tri-Color with Anchor (2-wire installation) 2 NM (nautical mile) LED navigation light, certified USCG/ ABYC A-16 & 72 COLREGS. This light is used for sailboats up to 20 meters (65 feet). The light also has a built in Windex illumination window for night time sailing. Used by recreational vessels worldwide.
Specifications
- Visibility: 2NM Combination Tri-Color & Anchor LED Navigation Light
- Certified: USCG Certified, ABYC A-16, 72 COLREGS
- Boat type: sailboat vessels to 20 meters (65 feet).
- Horizontal Viewing Angle: 112.5/ 112.5/ 135/ 360 degrees.
- Windex Illumination: Built in illumination window.
- Voltage Range: 10-30 VDC
- Current Draw: 0.300 amps at 12 VDC
- Protection: Polarity & 1500 watt surge
- LED: High Brightness 50,000 hours
- LEDs: 3
- Watts: 3
- Color: Red, Cyan, White.
- LEDs: 3
- Watts: 3
- Color: White
- Led Driver: Constant Current.
- EMI: Active filtering.
- Construction: Hard Coated Anodized Aluminum, polycarbonate lens.
- Wiring: 2.5 feet, 3 wire, 20 AWG tinned, UV jacket marine wire.
- Installation: 2 wire
- Durability: Water & Vibration proof.
- Dimensions: Height 4.5” x 1.5” Diameter
- Weight: 8.2 oz
- Mounting: ¼” x 20 female threads on bottom of light for mounting.
- Bracket Included: BRKT360
- Brackets Optional: PADPT1, PADPT75
- 5 Year Warranty
- Made in USA
|
