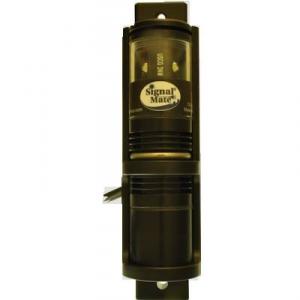

Combination Masthead with White Deck Light, 3 NM (nautical mile) LED navigation light, certified USCG/ ABYC A-16 & 72 COLREGS. This light is used for power, sailboats and commercial vessels up to 20 meters (65 feet). Used by military, commercial and recreational vessels worldwide.
Specifications
- Visibility: 3NM Combination masthead with White deck LED Navigation Light
- Certified: USCG Certified, ABYC A-16, 72 COLREGS
- Boat type: Commercial, power, sailboat vessels to 20 meters (65 feet).
- Horizontal Viewing Angle: 225 degrees
- Voltage Range: 10-30 VDC
- Current Draw: 0.300/0.300 amps at 12 VDC
- LEDs Masthead: 2
- Watts: 2
- Color: White
- LEDs Deck: 3
- Watts: 3
- Color: White
- Led Driver: Constant Current
- Protection: Polarity & 1500 watt surge
- LED: High Brightness 50,000 hours
- EMI: Passive & Active filtering.
- Construction: Hard Coated Anodized Aluminum, polycarbonate lens.
- Wiring: 2 x 2.5 feet, 2 wire, 20 AWG tinned, UV jacket marine wire.
- Installation: 3 wire
- Durability: Water & Vibration proof
- Dimensions: Height 7.75” x 2” Diameter
- Weight: 17 oz
- Mounting: (2) ¼” holes top and bottom of fixture.
- Bracket Included: Machined HDPE
- 5 Year Warranty
- Made in USA
|
