3NMMHDKR.jpg Signal Mate LED 3NM Masthead Steaming  Light & Red Deck Light

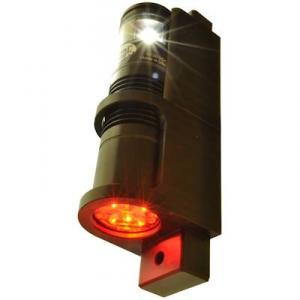

Signal Mate LED 3NM Masthead Steaming Light & Red Deck Light


MFG#: 3NMMHDKR
SKU:



$670.00 $536.95 Captain's Price!
Qty
Bookmark This Page Tell A Friend Rate This Product

Combination Masthead with Red Deck Light, 3 NM (nautical mile) LED navigation light, certified USCG/ ABYC A-16 & 72 COLREGS. This light is used for power, sailboats and commercial vessels up to 20 meters (65 feet). Used by military, commercial and recreational vessels worldwide.

Signal Mate Deck LightSpecifications

  • Visibility: 3NM Combination masthead with Red deck LED Navigation Light
  • Certified: USCG Certified, ABYC A-16, 72 COLREGS
  • Boat type: Commercial, power, sailboat vessels to 20 meters (65 feet).
  • Horizontal Viewing Angle: 225 degrees
  • Voltage Range: 10-30 VDC
  • Current Draw: 0.300/0.300 amps at 12 VDC
  • LEDs Masthead: 2
  • Watts: 2
  • Color: White
  • LEDs Deck: 3
  • Watts: 3
  • Color:Red
  • Led Driver: Constant Current
  • Protection: Polarity & 1500 watt surge
  • LED: High Brightness 50,000 hours
  • EMI: Passive & Active filtering.
  • Construction: Hard Coated Anodized Aluminum, polycarbonate lens.
  • Wiring: 2 x 2.5 feet, 2 wire, 20 AWG tinned, UV jacket marine wire.
  • Installation: 3 wire
  • Durability: Water & Vibration proof
  • Dimensions: Height 7.75” x 2” Diameter
  • Weight: 17 oz
  • Mounting: (2) ¼” holes top and bottom of fixture.
  • Bracket Included:Machined HDPE
  • 5 Year Warranty
  • Made in USA
