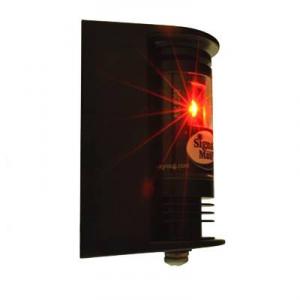

Port 2 NM (nautical mile) LED navigation light, certified USCG/ ABYC A-16 & 72 COLREGS. This light is used for power, sailboats and commercial vessels up to 50 meters (164 feet). Used by military, commercial and recreational vessels worldwide.
Specifications
- Visibility: 2NM Port LED Navigation Light
- Certified: USCG Certified, ABYC A-16, 72 COLREGS
- Boat type: Commercial, power, sailboat to 50 meters (164 feet).
- Horizontal Viewing Angle: 112.5 degrees
- Voltage Range: 10-30 VDC
- Current Draw: 0.100 amps at 12 VDC
- Protection: Polarity & 1500 watt surge
- LED: High Brightness; 50,000 hours
- LEDs: 1
- Watts: 1
- Color: Cyan
- LED Driver: Constant Current
- EMI: Passive filtering.
- Construction: Hard Coated Anodized Aluminum, polycarbonate lens.
- Wiring: 2.5 feet, 2 wire, 20 AWG tinned, UV jacket marine wire.
- Installation: 2 wire
- Durability: Water & Vibration proof
- Dimensions: Height 3.25” x 1.5” Diameter
- Weight: 6.4 oz
- Mounting: ¼” x 20 female threads on bottom of light for mounting.
- Bracket Included: BRKTTERM with wire termination area in rear of fixture.
- Brackets Optional: BRKT360, PADPT1, PADPT75
- 5 Year Warranty
- Made in USA
|
