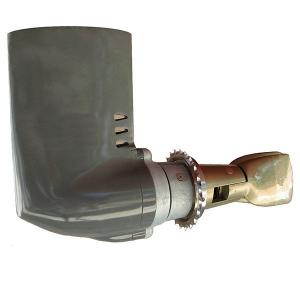

Shaft Shark Saildrive Model

Please supply the make and model of your saildrive and propeller when ordering.

• SS 563 Maxprop Easy, 63mm hub
• SS 585T 2-blade Gori
• SS 673.6 Varifold 73.6mm hub
• SS 678 Variprop GP80, 78mm hub
• SS 680 Variprofile VP76, 80mm hub
• SS 695 Flexofold, Variprop GP107, Variprop GP112
• SS 696 3-blade GORI, Volvo 2000-2019
• SS 697 2 and 3-blade Volvo 2019 Onward
• SS 792 Maxprop Easy, 92mm hub

Shaft Shark Saildrive Model – Protect your drive train and propeller with the best rope, line and debris cutter there is.

The SHAFT SHARK is a serrated edge circular blade machined from high quality 316L type stainless steel. It attaches to your shaft just forward of the propeller and rotates with the shaft or saildrive hub, cutting away any rope, weed or debris that might try to entangle your shaft & propeller. It is available as a two-piece / split unit and a single-piece unit. It may be installed on both shafts and saildrive systems.

• Keep your propeller free from rope, weeds and underwater debris
• Eliminate the possibility of damage to your propeller, strut and cutlass
• Eliminate the need for being towed due to fouled stern gear or propeller

Installation
Installation is simple and quick. No need to remove the propeller to install. Installation underwater by a diver? … Yes, simple & easy. Included with each unit is 1.0ml of Vibra-tite VC3, which is a Loctite type material and is also suitable for underwater installations.

Models #900 & #1200 are single piece units that will require removal of the propeller to install.
The SHAFT SHARK requires less than 0.90 inch (23mm) of shaft clearance between the cutlass bearing and the propeller hub. Models #600 & above require 1.25~1.50 clearance. This allows for sufficient clearance with the cutlass bearing for shaft movement when maneuvering and for water-flow through the cutlass bearing.

Drag
The SHAFT SHARK is sized to both the shaft diameter and the propeller hub diameter to ensure the lowest drag factor for the boat. Overall drag will vary depending upon the speed of the boat … the propeller hub diameter and the size of the SHAFT SHARK installed. This is why there are different model units to suit the shaft and hub combinations.

Maintenance
With no moving parts maintenance is minimal. There are no moving parts to maintain or replace on an annual basis. The edges can be re-sharpened when necessary.

Shaft Diameter and Spacing

• SS Hub Ø = 4.875"
• Min Space Needed 0.85"
• SS Height/OD 5.875"
• Torque Saildrive SS 695 & 696 - M8 – 146.2in-lb, use 6mm allen wrench
