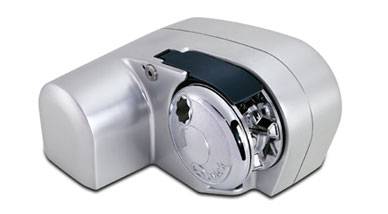

Quick Ultra Genius 600 Windlass

DISCONTINUED

Compact, Strong, Top Performance

The Quick Ultra Genius Windlass 600 Series perfectly suit the requirements of those who have limited space below deck or on deck. The Quick Ultra Genius Windlass 600 is compact and easy to install. An elegant solution to the problem of too little muscle power. The Ultra Genius 600 is precision-machined to give you more muscle for your money than comparable units.

Each Quick Ultra Genius includes a reversible solenoid, a clutch handle and an owner's manual.

Available with or without rope drum.

Features:

• Rugged, high-strength, all-aluminum clear anodized housing
• Highly polished chrome-plated bronze rope/chain gypsy
• Poly-composite control arm with heavy-duty spring ensures smooth operation
• 40% faster retrieval than comparable windlasses at maximum load
• Choose from two gypsy sizes - 1/4" HT or 5/16" HT (specify at checkout)
• Clutch handle releases gypsy for manual freefall
• Power consumption is 30% to 50% less than comparable windlasses
• Permanent magnet motor and epicyclical (planetary) gears for maximum pull
• 3 year warranty

For boats from 20 - 39 ft (6 to 12 m)    Ultra Genius 500W  20 - 30 ft (6 - 9 m)    Ultra Genius 800W  26 - 39 ft (8 - 12 m)

Standard version Genius/FF 600 / 600 D Motor power 500 W Motor supply voltage 12 V Maximum pull 1500 lb Maximum working load 550 lb Working load 187 lb Current absorbtion @ working load (1) 40 A Maximum chain speed (2) 48 ft/min Maximum chain speed @ working load (2) 43 ft/min Weight - Genius - [without drum] 23 lb Weight - Genius D - [with drum] 25 lb Weight - Genius FF 24 lb 1)  After an initial period of use 2)  Measurements taken with a gypsy for a 8 mm chain
