C Plath Venus H Compass 5° Card, Black, Type 2795 C Plath Venus H Compass 5° Card, Black, Type 2795

C Plath Venus H Compass 5° Card, Black, Type 2795


MFG#: 73 245
SKU:



$2,500.99 $2,108.99 Captain's Price!
Qty

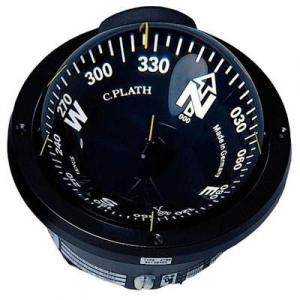

This C-Plath Venus H compass with a 5° card. It can be flush mounted in the cockpit floor, helm station, deck, or steering pedestal of large motor and sailing yachts. The Venus Compass H is manufactured in Germany by C. Plath and is built to function reliably in environments where strong vibrations, saltwater, heat, humidity, and cold are the norm. The black housing is seawater resistant and made of a light alloy. The super-strong glass dome is insensitive to ultraviolet rays, and is guaranteed for life against cracking, crazing, and yellowing under normal use.

  • Type 2795
  • 6 Lubber lines: 5 yellow lubber lines and 1 curved main lubber line
  • 1 shadow pin for relative bearing
  • 5° compass card
  • Full spherical construction with internal gimbal system
  • Corrosion resistant anodized aluminum, powder-coated housing
  • For use in northern and southern hemispheres
  • Accuracy of indication: less than or = 1°
  • Vibration resistance exceeds requirements of BSH (German Hydrographic Institue)
  • Red, glare-free 12-V or 24-V lighting
  • Glass dome blocks UV waves
  • Oscillation-free double bottom compensates volume changes in compass fluid
  • Accuracy at all angles of heel insured by full internal gimbal system
  • Certified by GL (Notified Body 0098) according to the requirements 96/98/EC in accordance with module B and D (Wheelmark)
  • Deviation error



NSN:  6605-01-615-2293

Dimensions: Apparent card diameter: 5-3/4" (150mm) Cutout diameter: 6" (152mm)
Weight: Compass: 6.75 lbs. (3,062 g), Cylinder: 4.06 lbs. (1,842 g)

UPC Code: 721002732453
HTS Code: 9014.10.9000
NSN: 6605-01-615-2293

Options and Accessories
Product SKU Captain's Price Options Qty
C Plath Venus Binnacle, Black $331.99
