Oceanair Skyshade Cabinshade - CSH

Dometic Oceanair Cabinshade
Our Oceanair CabinShade (formerly OceanAir Railshade) is a cassette roller blind housed in a simple, functional extrusion for hatches or windows. It can be used for vertical or horizontal surfaces, with the added benefit of also being well suited for slightly curved headlinings. Oceanair CabinShade is easy to fit and comes in a range of standard sizes.

The Oceanair CabinShade combines the performance and technology of the Oceanair Skyscreen fabric in a functional, cost-effective product. Quick and simple to install, the Oceanair CabinShade is an easily retro-fitted, 'off-the-shelf' solution, that does not compromise on high-quality, 100% blackout fabric.

  • 100% blackout fabric
  • 100% marinized for the haCSHest environments
  • Simple installation, all mounting hardware included

CUSTOM SIZES- Choose from sizes, shapes and materials outside our standard range and have your CabinShade made to order. Complete the Custom CabinShade Order form and return it to AhoyCaptain by Fax @ 866-454-7459 or Email it to orders@ahoycaptain.com.
Download Custom CabinShade Order Form

Ideally suited for curved headlines

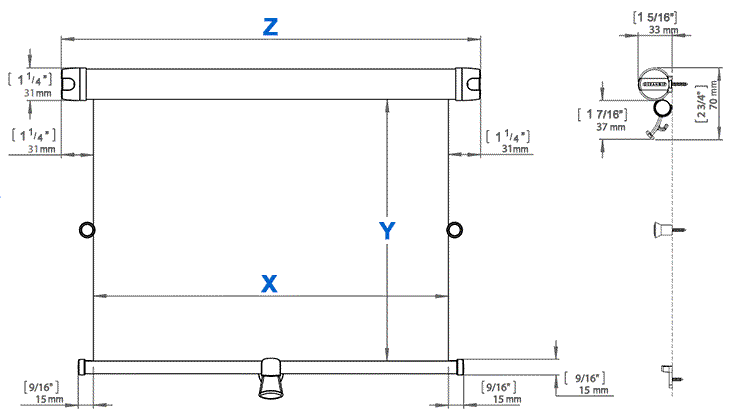

OceanAir Cabinshade headline diagram
Simple end fitting and tubular cassette design make CabinShade ideal for cambered headlinings.

Measure the required size XY or ZY on the diagram. Use the table to select the nearest bigger size. If standard size is not suitable, please order custom unit by specifying XY or ZY dimensions.

Size

X

Y

Z

CSH-1

14 1/8''

15 3/4''

15 5/8''

CSH-2

18 1/2''

20 1/8''

20''

CSH-3

21 5/8''

23 5/8''

23 1/8''

CSH-4

26 3/4''

27 1/2''

28 1/4''
