Named "Best Radar Reflector" by US Coast Guard. Proven superior, Mobri is the standard by which all other reflectors are measured
Designed to be positioned high in the rigging of sailboats over 40 ft.
Mobri Radar Reflectors are compact, multi-angular, passive (no power supply) radar reflector trusted by professional mariners around the world for maximum radar visibility in all kinds of weather.

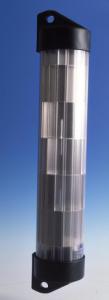

The Mobri S-4 radar reflector offers our greatest reflective capacity by using 28 pieces of aluminum arranged at 90 degrees and staggered at 22.5 degrees. It provides a radar cross section of 4 sqm.
The Mobri S-4 is designed to be mounted in the rigging of larger sailboats. The best performance is achieved when the Mobri radar reflector is mounted in a vertical position as high as possible above the deck, a minimum of 13 feet (4 m) above deck is recommended. It should be mounted in the shrouds away from the "shadow" of the mast. Mounting eyes are molded in the structure at top and bottom. Durable lashing materials should be used to attach it to the standing rigging
AhoyCaptain recommends mounting two reflectors, one port and one starboard, just below the highest spreaders. We also have found from experience that good quality exterior grade wire ties work best to secure the reflectors to the shrouds.
No matter what your vessel looks like, make sure you can be "seen" with Mobri's unique, low windage, noiseless, chafe-free and light-weight reflector.
Features:
- Applications: Offshore sailing
- Noiseless
- Light weight
- Low windage
- Less chance of chafe to the sails and rigging
- Color: Black
- Dimensions: ø 3.95in x23.23in (100 x 590 mm)
- Weight: 1.94 lbs (880 g)
|
