Mantus Bridles are available in two configurations:
Universal: designed to be used with the bow cleats

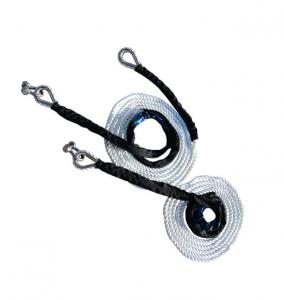

Catamaran: designed to be used with bow eye-bolts
Product Details:
- Designed to absorb the shock load from wind gusts and waves
- Employs chafe protection to all areas exposed to rubbing
- Uses heavy duty 316L stainless steel shackles and thimbles
- Mantus Chain Hook/Grabber sized for your chain (Optional)
- Carabiner used to attach the bridle to the Mooring line
Bridle Specifics:
- Bridle Size: Large
- Boat Size: 50 – 70 feet
- Rope: Three Strand Nylon
- Diameter: 1 inch
SWL 3675 lbs
UBS 29,400 lbs
- Bridle length overall: 30 feet
- Individual Leg length: 26 feet
- Thimble 316LSS: 1 inch Heavy Duty
- Shackle 316LSS Forged: 5/8″ S0116-FS16)
When tying to a mooring, attach the carabiner to the shackle in place of the hook instead of bringing the dirty mooring line onboard.
Simply said, the bridle ensures that your anchor has the highest chance of staying put and your boat staying intact.
NOTE: Chain Hooks Sold Separately.
|
