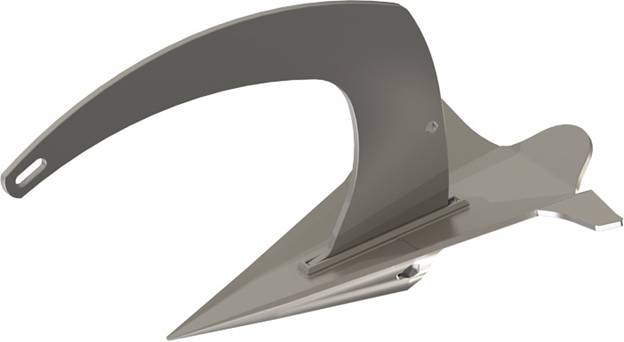

Mantus M1 Stainless Steel Anchors

The Mantus Stainless Steel anchor features a duplex stainless steel shank for better strength and corrosion resistance. The fluke is solid 316L stainless steel. This anchor does not have a mirror polished finish that often comes with stainless steel anchors. Instead the surface is shot-peened to harden it and then electro-polished. Although mirror polish protects against corrosion, a mirror polished anchor gets scratched as soon as it is used. This can result in surface defects that form origination points for corrosion propagation. A shot-peened, hardened surface is more resistant to abrasion and thus corrosion.

DIGS LIKE NO OTHER
The Mantus Anchor is designed to penetrate dense grassy bottoms and set with unparalleled holding power. When tested, our anchors set faster and deeper than any other tested anchor, including Rocna, Manson Supreme, Bulwagga, Fortress, Bruce, CQR and Danforth anchors.

EASY TO STORE
The Mantus anchor lineup simply has the best boat anchors available. Whether you are a long range cruiser, racing or going out for a day sail. The Mantus breaks down for easy storage, so you can store one or two as spares without taking up much needed boat space.

BUILT STRONG
  • Formed out of high quality steel plate. Contains no cast parts.
  • Shank and shank boot are welded from top and bottom.
  • Shank and roll bar are bolted to the fluke.
  • ASTM certified steel bolts are oversized with a large margin to ensure safety.
  • Although the shank is attached to the fluke with 4 bolts, a single bolt has sufficient strength to handle the maximum expected load on the anchor.
  • Stainless Steel anchors are made of 316L Stainless and hand polished to a # 7 finish.
  • Galvanized Steel anchors are 100% hot-dipped galvanized for corrosion protection.
  • Sharp-headed nose is precision machined to achieve the perfect chisel shape to achieve maximum penetrating power.
LIFE TIME WARRANTY
Mantus Anchors offers a Lifetime Warranty on its anchors.



Size Dimension A Dimension B Dimension C Dimension D Dimension E Dimension F
2 lbs.
(1 kgs.)
9.1 in.
(231 mm.)
14.6 in.
(371 mm.)
10.2 in.
(260 mm.)
15.9 in.
(403.9 mm.)
5.2 in.
(132 mm.)
6.3 in.
(160 mm.)
8 lbs.
(3.6 kgs.)
12.2 in.
(310 mm.)
15.6 in.
(396 mm.)
13 in.
(330 mm.)
19 in.
(482 mm.)
6.8 in.
(172 mm.)
7.9 in.
(200 mm.)
13 lbs.
(5.9 kgs.)
14.8 in.
(376 mm.)
19 in.
(483 mm.)
15.9 in.
(404 mm.)
23 in.
(584 mm.)
8.3 in.
(210 mm.)
9.6 in.
(244 mm.)
25 lbs.
(11.4 kgs)
17.7 in.
(450 mm.)
22.7 in.
(577 mm.)
19 in.
(482 mm.)
27.5 in.
(698 mm.)
9.8 in.
(249 mm.)
11.4 in.
(290 mm.)
35 lbs.
(15.9 kgs.)
19.7 in.
(500 mm.)
25.3 in.
(642 mm.)
21.1 in.
(536 mm.)
31 in.
(787 mm.)
11 in.
(279 mm.)
12.5 in.
(318 mm.)
45 lbs.
(20.5 kgs.)
22.1 in.
(561 mm.)
28.4 in.
(721 mm.)
23.7 in.
(602 mm.)
34.3 in.
(871 mm.)
12.3 in.
(312 mm.)
14.3 in.
(363 mm.)
65 lbs.
(29.5 kgs.)
25.2 in.
(640 mm.)
32.4 in.
(823 mm.)
27 in.
(685 mm.)
39.1 in.
(993 mm.)
14 in.
(356 mm.)
16.3 in.
(414 mm.)
85 lbs.
(38.6 kgs.)
26.7 in.
(678 mm.)
34.4 in.
(874 mm.)
28.7 in.
(729 mm.)
41.5 in.
(1054 mm.)
14.9 in.
(378 mm.)
17.3 in.
(440 mm.)
105 lbs.
(47.7 kgs.)
29 in.
(736 mm.)
37.2 in.
(945 mm.)
31 in.
(787 mm.)
45 in.
(1143 mm.)
16.1 in.
(408 mm.)
18.7 in.
(474 mm.)
125 lbs.
(56.8 kgs.)
31.2 in.
(792 mm.)
40 in.
(1016 mm.)
33.4 in.
(848 mm.)
48.4 in.
(1229 mm.)
17.4 in.
(441 mm.)
20.2 in.
(513 mm.)
175 lbs.
(79.5 kgs)
35.4 in.
(899 mm.)
45.4 in.
(1154 mm.)
37.9 in.
(963 mm.)
54.9 in.
(1393 mm.)
19.7 in.
(499 mm.)
23 in.
(584 mm.)
