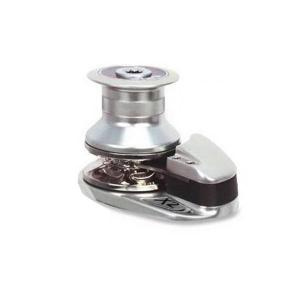

Lofrans PROJECT 1000/X2 Capstan Lofrans PROJECT 1000/X2 Capstan Windlass, 1000W - 12VDC

Lofrans PROJECT 1000/X2 Capstan Windlass, 1000W - 12VDC


MFG#: LW7921
SKU:



$3,350.00 $2,747.00 Captain's Price!

Oversized
Choose chain type Qty

The new Project 1000 windlass from Lofrans features sleek, contemporary styling while taking function to the next level. The Project 1000 features a high torque series-wound electric motor that delivers immediate power and offers accelerated payout of ground tackle. This unique motor design enables the operator to lower the anchor to the sea bed floor safely and quickly _ a tremendous benefit in a tight anchorage!

Retrieval speed is not sacrificed, ensuring the ground tackle is recovered at a rate that allows the operator to safely control stowage of the rode. The internal working of the Lofrans Project 1000 windlass is advanced as well. The milled mainshaft eliminates the need for key stock in the topworks, which makes servicing easier. The mainshaft is also supported by a sealed AISI 440 watertight bearing.

The Project 1000 gives you instant power, Lofrans durability and unsurpassed convenience. Self-lubricating Delrin pressure finger assists in seamless rope/chain transition. The 1000 Watt, 2-speed motor provides fast, powerful retrieval and accelerated payout. The Project 1000 accepts 5/16” High Test (HT) or BBB chain spliced to 9/16” or 5/8” 3-strand nylon rope. There is a manual override using the included handle. Mainshaft and chainpipe holes are the same diameter and can be cut with a simple hole saw.

Downloads:
Chainwheel Chart 63 KB
Owners Manual 874 KB
Parts Breakdown 282 KB
Parts List 108 KB
Product Catalog 446 KB
Product Sheet 177 KB
Wiring Diagram 70 KB

 Product Details - LW7921
Version: Capstan
Voltage: 12VDC
Motor Wattage: 1000
Finish: Chromed Bronze
Standard Equipment: Rope/Chain Management System, Watertight Control Box, (2) Covered Footswitches & Manual Override Clutch Handle
Working Load: 220 lbs (100kg)
Amperes @ No Load: 70
Amperes @ Working Load: 110
Retrieval Speed @ No Load: 79 ft/min
Retrieval Speed @ Working Load: 52 ft/min
Max. Deck Thickness: 1-9/16 in.
Chain Size: 5/16 in. HT, 5/16 in. BBB
Rope Sizes: 9/16 in., 5/8 in.
Weight: 42 lbs.
