Lofrans KOBRA Lofrans KOBRA Windlass, 1000W - 12VDC

Lofrans KOBRA Windlass, 1000W - 12VDC


MFG#: LW375AN
SKU:


$3,100.00 $2,542.00 Captain's Price!
Specify chain size and chain type. Qty

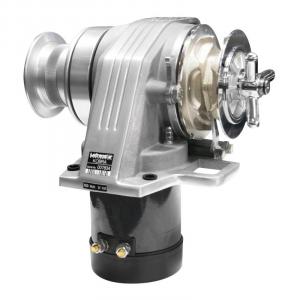

The Lofrans Kobra horizontal windlass is a neat compact windlass with gearbox in the housing above deck and reversing motor below deck. Available with 1000 watt 12VDC or 24VDC motor. The rope drum can be used independently of the gypsy. Supplied complete with handle and control box
Downloads

 Product Details -  LW375AN
Version: Kobra, Anodized, 12V, 1000W
Voltage: 12V
Motor Wattage: 1000W
Power Rating: 1385 lbs (630 kg)
Weight: 41 lbs (19 kg)
Finish: Anodized
Standard Equipment: Watertight Control Box, (2)Footswitches, Chainwheel & Manual Override w/Handle
Working Load: 220 lbs (100 kg)
Amperes @ No Load: 60
Amperes @ Working Load: 115
Retrieval Speed @ No Load: 105 ft/min (32 m/min)
Retrieval Speed @ Working Load: 59 ft/min (18 m/min)
Max. Deck Thickness:
Chain Sizes: 1/4HT, 5/16ALL, 3/8ALL
Rope Sizes: N/A
Weight: 41 lbs.

Options and Accessories
Product SKU Captain's Price Options Qty
3/8'' BBB Chain Gypsy - Royal, Tigres, Cayman, Kobra $314.95
