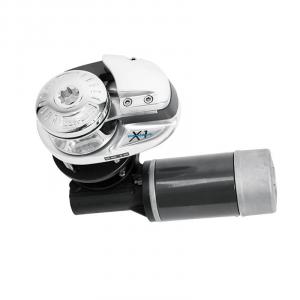

Lofrans PROJECT 500/X1 Low Profile Windlass, 500W - 12VDC

Vertical rope/chain windlass for boats under 33'. The Lofrans Project 500 can handle setting a lunch hook or an all chain rode in a heavy squall with power to spare.

Downloads: Chainwheel Chart 63 KB Dimensional Drawing 42 KB Owners Manual 655 KB Parts List 108 KB Product Sheet 112 KB Wiring Diagram 64 KB

Features & Benefits • Contemporary topworks styling and smooth lines enhance the foredeck. • Our aft facing stainless pressure finger ensures smooth and trouble-free transition from rope to chain during retrieval and deployment.  • High ratio gearbox for fast retrieval.  • Stainless mainshaft.  • Worm drive sealed gearbox.  • Radially adjustable gearbox.  • Anodized aluminum gearbox housing.  • Bronze gears.  • Built in chainpipe.  • Neoprene deck gasket included.  • Clutch handle included.  • 3 year warranty.  • Option:  Extra deck clearance model available, to 4 3/4"

Product Details Version: Low Profile Voltage: 12VDC Motor Wattage: 500W Finish: Chromed bronze Deck clearance: Min. 18mm / Max. 30mm (1-1/8") Amperes @ no load: 40 Amperes @ working load: 60 Retrieval speed @ no load: 45'/min Retrieval speed @ working load: 52'/min Power rating: 850 lbs Chain size: 1/4" HT Rope size: 1/2" Standard equipment: Rope/chain management system; watertight dual direction solenoid control box; (2) black covered footswitches; clutch handle Weight: 22.000 lbs.
