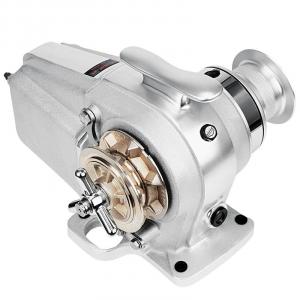

Lofrans TIGRES Windlass,1500W,12/24V

Lofrans Tigres windlass for boats from 36'-49'.  One of the all-time most popular windlasses.
Unique features include a handy top mounted snubbing cleat, standard manual override, all chain retrieval, and oil-level window. Where space allows them, these horizontal windlasses put the motors on deck in sleek housings that provide a more traditional appearance.The Lofrans Tigres Windlass is available with a powerful 1500 watt 12VDC or 24VDC (special order) reversing motor, allowing the anchor to be released electrically as well as manually. Charter companies select the Lofrans Tigres for its durability and trouble-free design.

Features:

• Purpose-built (for maritime exposure), series-wound electric motors – for higher power ratings, faster retrieval speeds, easy servicing, greater dependability and longer lasting service
• Marine anodized aluminum body
• A convenient sight glass allows easy visual inspection of oil level.
• Independent gypsy and drum operation
• Manual chain release
• Manual override
• IP67 motor cover
• Available options in 12V, 24V & 48V*
• Available with gypsies for PC, BBB, or HT chain
• Rope/Chain Retrieval Kit is available for all TIGRES - Horizontal Windlasses.

Standard Equipment :

• Watertight control box
• 2 Footswitches
• Chainwheel & manual override w/handle
• Power-up, reversible to power-down, and manual/emergency mode (for which a handle is included)
• Useful top-mounted cleat



  Product Details - Tigres Horizontal Windlass Model: Tigres Horizontal Windlass Voltage: 12VDC, 24VDC or 48VDC* Motor Wattage: 1500w Max Pull: 3090 lbs (1400 kg) Working Load: 430 lbs (195 kg) Amperes @ No Load: 12v - 65 amps 24v - 32 amps Amperes @ Working Load: 12v - 160 amps 24v - 90 amps 48v - 33 amps*   Retrieval Speed @ No Load: 112 ft/min (34 m/min) Retrieval Speed @ Working Load: 80 ft/min (19 m/min) Max. Deck Thickness: N/A     Chain Sizes: 1/4HT, 5/16ALL, 3/8ALL Rope Sizes: N/A Weight: 61 lbs. Finish: Anodized Standard Equipment: Watertight Control Box, (2) Footswitches, Chainwheel & Manual Override w/Handle

  DIMENSIONS mm inch A 286 11 1/4" D 85 3 3/8" F 412 1' 4 1/4" L 95 3 3/4" M 155 6 1/8" N 185 7 5/16"

  * For the 48V variant we have 63% decrease in amperage consumption in relation to the 24V equivalent variant, which makes it a cost efficient solution (smaller cables, supply from the same home batteries which results in lower installation costs). Call for availability.
