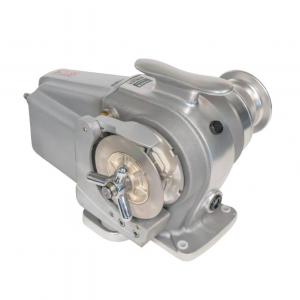

Lofrans Tigres R/C Windlass for boats from 36'-49'. One of the all-time most popular windlasses now with rope/chain retrieval capability.
Unique features include a handy top mounted snubbing cleat, standard manual override, rope & chain retrieval, and oil-level window. Where space allows them, these horizontal windlasses put the motors on deck in sleek housings that provide a more traditional appearance.The Lofrans Tigres R/C Windlass is available with a powerful 1500 watt 12, 24 and 48VDC* (special order) reversing motor, allowing the anchor to be released electrically as well as manually. Charter companies select the Lofrans Tigres for its durability and trouble-free design.
Features:
- Purpose-built (for maritime exposure), series-wound electric motors – for higher power ratings, faster retrieval speeds, easy servicing, greater dependability and longer lasting service
- Marine anodized aluminum body
- A convenient sight glass allows easy visual inspection of oil level.
- Independent gypsy and drum operation
- Manual chain release
- Manual override
- IP67 motor cover
- Available options in 12V, 24V & 48V*
- Available with gypsies for PC, BBB, or HT chain
Standard Equipment :
- Watertight control box
- 2 Footswitches
- Chainwheel & manual override w/handle
- Power-up, reversible to power-down, and manual/emergency mode (for which a handle is included)
- Useful top-mounted cleat
| Product Details - Tigres Horizontal Windlass |
| Model: |
Tigres R/C Horizontal Windlass |
| Voltage: |
12VDC, 24VDC or 48VDC* |
| Motor Wattage: |
1500w |
| Max Pull: |
3090 lbs (1400 kg) |
| Working Load: |
430 lbs (195 kg) |
| Amperes @ No Load: |
12v - 65 amps
24v - 32 amps |
| Amperes @ Working Load: |
12v - 160 amps
24v - 90 amps
48v - 33 amps* |
| Retrieval Speed @ No Load: |
112 ft/min (34 m/min) |
| Retrieval Speed @ Working Load: |
80 ft/min (19 m/min) |
| Max. Deck Thickness: |
N/A |
| |
|
| Chain Sizes: |
1/4HT, 5/16ALL, 3/8ALL |
| Rope Sizes: |
N/A |
| Weight: |
61 lbs. |
| Finish: |
Anodized |
| Standard Equipment: |
Watertight Control Box, (2) Footswitches, Chainwheel & Manual Override w/Handle |
|
|
|
DIMENSIONS
|
mm
|
inch
|
|
A
|
286
|
11 1/4"
|
|
D
|
85
|
3 3/8"
|
|
F
|
412
|
1' 4 1/4"
|
|
L
|
95
|
3 3/4"
|
|
M
|
155
|
6 1/8"
|
|
N
|
185
|
7 5/16"
|
|
* For the 48V variant we have 63% decrease in amperage consumption in relation to the 24V equivalent variant, which makes it a cost efficient solution (smaller cables, supply from the same home batteries which results in lower installation costs). Call for availability. |
